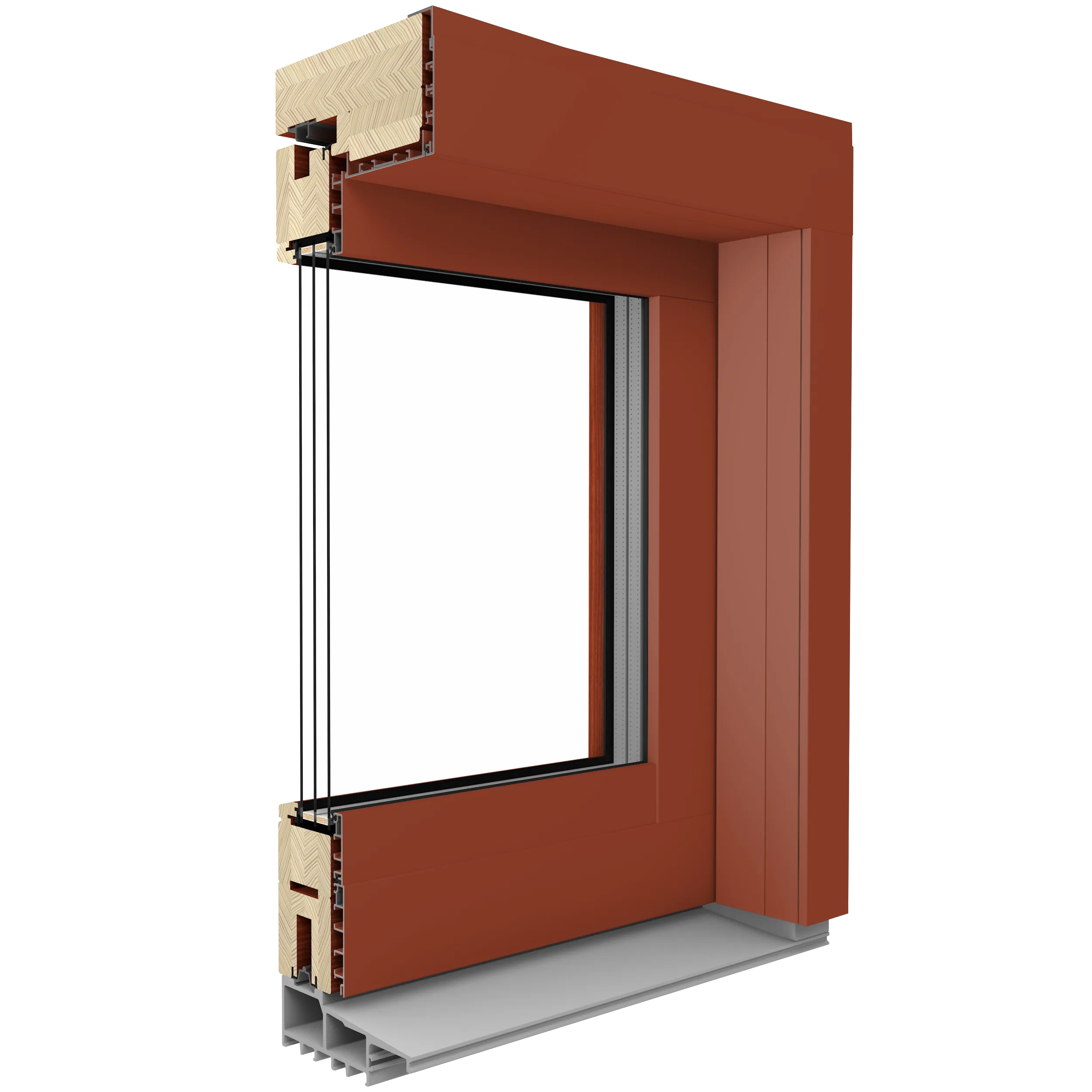

DUOLINE HS

Classic and modern

3
EPDM gaskets
from Ug = 0,5
GLASS THERMAL INSULATION
194/214/234 mm
INSTALLATION DEPTH
EPDM gaskets
3
GLASS THERMAL INSULATION
from Ug = 0,5
INSTALLATION DEPTH
194/214/234 mm

DUOLINE HS

Choose the colour that suits you from over 200 RAL colours for the aluminium part of the window and a dozen colours of opaque paints (covering the entire wood structure) and stain paints for the wooden part of the window.

Colour range for the wood and aluminium terrace system

Choose the colour that suits you from over 200 RAL colours for the aluminium part of the window and a dozen colours of opaque paints (covering the entire wood structure) and stain paints for the wooden part of the window.

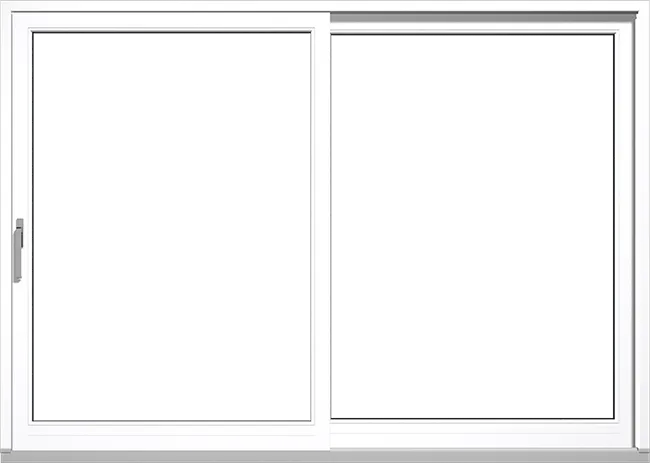

Indoor view

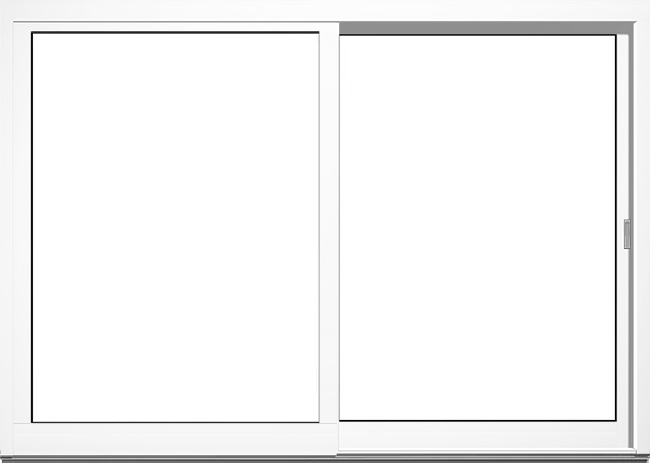

outdoor view
White Softline
Maghoni
Pine
Maghoni
Meranthi
Teak
Pine
Teak
Meranthi
Nut
Pine
Nut
Meranthi
Bright oak
Pine
Bright oak
Meranthi
Palisander
Pine
Palisander
Meranthi
Dark Oak
Pine
Dark Oak
Meranti
Choose the colour for the wooden part::
White Softline
Choose the colour for the aluminium part::
Orange brown
RAL-8023

Glass

DRUTEX, with over 30 years of experience in the production of composite glass, offers a very wide range of glass with which you can fit your windows and doors. They meet strict requirements for energy efficiency and sound insulation. The offer also includes laminated glass (safe and burglar-proof), sun protected glass, glass with enhanced sound insulation, tempered, ornamental and sandblasted glass.

Wood and aluminium terrace systems

Create the terrace system that will meet your expectations.
Frames
Galvanised steel frame is the standard. Hoever It is possible to choose the Swisspacer Ultimate warm frame.
See all
Muntin bars
Muntin bars will add classic and timeless style to your windows and doors.
See all
Internal muntin bars
Internal muntin bars
Sizes: 8/18/26/45 mm
Internal muntin bars
Internal muntin bars
Sizes: 8/18/26/45 mm
Reliable fittings
MACO fittings are the perfect solution in terms of security and functionality of windows and doors made of PVC, aluminium and wood.
See all
Aluminium balcony pull
Aluminium balcony pull
Available in: white RAL 9016, silver RAL 9006, brown RAL 8019, RAL 1036, RAL 7016.
Reed switch
Reed switch
Sandblasted glass
Express your unique style on your windows and doors. We offer the possibility of creating any sandblasting pattern in three shades of gray.
See all
Mounting accessories
See all

Compare products

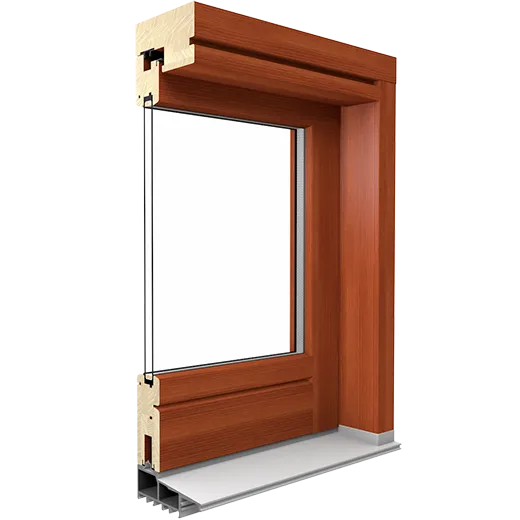

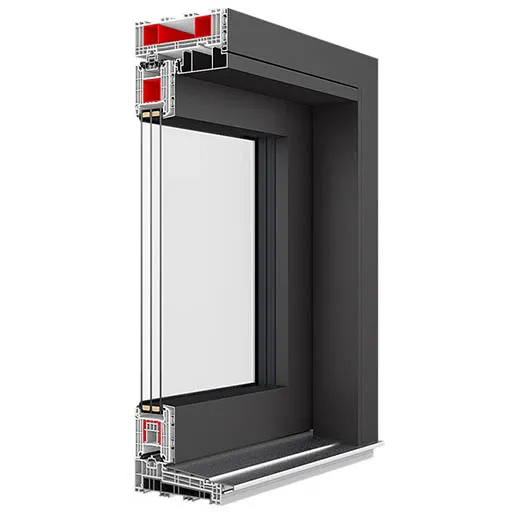

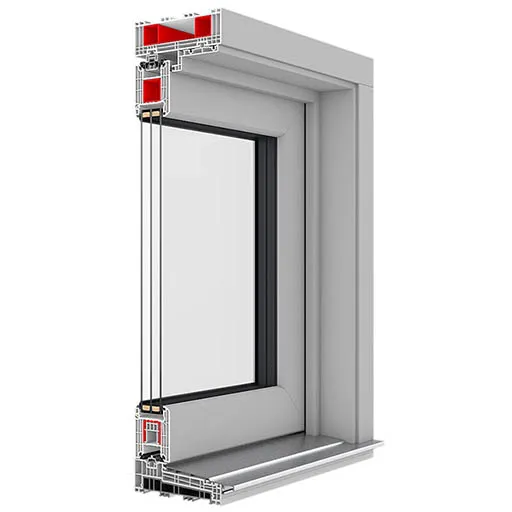

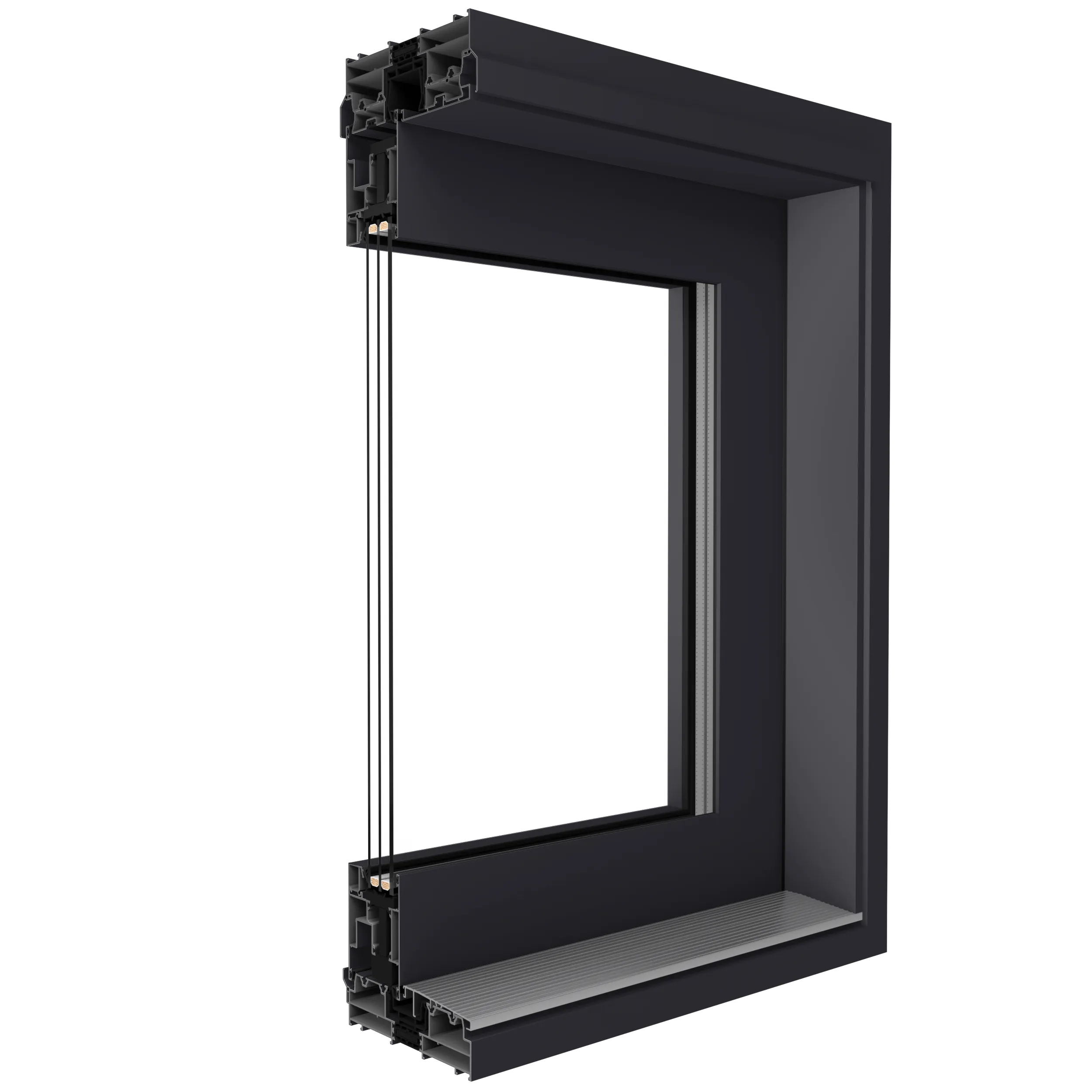

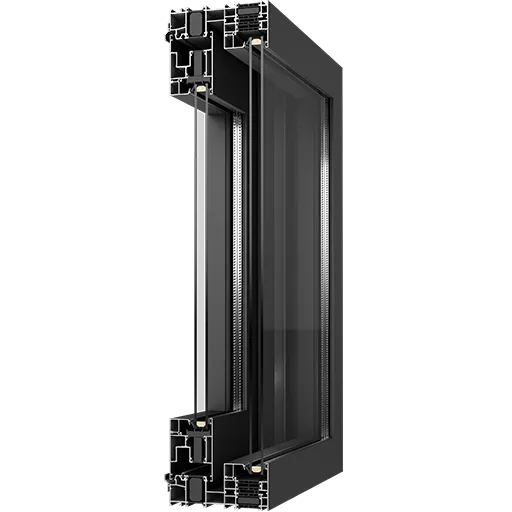

Technical dataDUOLINE HSDUOLINE HSMB-77HS HI MONORAILMB-77HS HI MONORAILIGLO-HSIGLO-HSIGLO-HS ALUCOVERIGLO-HS ALUCOVERMB-77HS HIMB-77HS HISOFTLINE HSSOFTLINE HS
Number of chambers

Solid profile

3

7

7

3

Solid profile

Installation depth

194/214/234 mm

174 mm

194 mm

206 mm

174 mm

164/184/204 mm

Number of gaskets

3

2

2

2

2

2

Thermal transmittance

PINE 68 Uw=1,0 *1  /   PINE 78 Uw=0,85 *2  /  PINE 88 Uw=0,79 *3
MERANTI 68 Uw=0,96 *1  /  MERANTI 78 Uw=0,80 *2  /  MERANTI 88 Uw=0,75 *3

*1 for terrace system 3600x2450 mm with glass Ug=0,8 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
*2 for terrace system 3600x2450 mm with glass Ug=0,6 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
*3 for terrace system 3600x2260 mm with glass Ug=0,5 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method

Uw = 0,75 W/(m2K)*

*for a structure measuring 4,000 x 2,200 with T4 glass + 18 Swisspacer Ultimate + FL4 + 18 Swisspacer Ultimate + T4

 Uw = 0,71 W/(m2K)*

*for a structure measuring 2,700 x 2,300 with T4 glass + 18 SwissSpacer Ultimate + FL4 + 18 SwissSpacer Ultimate + T4

 Uw = 0,73 W/(m2K)*

*for a structure measuring 4000x2500mm with T4 glass + 18 SwissSpacer Ultimate + FL4 + 18 SwissSpacer Ultimate + T4

Uw = 1,0 W/(m2K)*

*for a structure measuring 4,000 x 2,200 with T4 glass + 18 SwissSpacer Ultimate + FL4 + 18 SwissSpacer Ultimate + T4

PINE 68 Uw=1,06 *1 /  PINE 78 Uw=0,89 *2  /  PINE 88 Uw=0,83 *3
MERANTI 68 Uw=1,02 *1 /   MERANTI 78 Uw=0,85 *2   /  MERANTI 88 Uw=0,79 *3

*1 for terrace system 3600x2450 mm with glass Ug=0,8 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
*2 for terrace system 3600x2450 mm with glass Ug=0,6 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
*3 for terrace system 3600x2260 mm with glass Ug=0,5 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method

Glass packages

DL68: 24-44mm
DL78: 24-50mm
DL88: 24-58mm

9-61 mm

36-52 mm

36-52 mm

9-61 mm

SL68: 24-32mm
SL78: 24-44mm
SL88: 24-54mm
