DUOLINE - 68, 78, 88

Unique combination of wood and aluminium

68 Uw = 0,90* / 78 Uw = 0,84** / 88 Uw = 0,79**

THERMAL TRANSMITTANCE

68/78/88 mm + spacer bar 14 mm

INSTALLATION DEPTH

Gaskets

THERMAL TRANSMITTANCE

68 Uw = 0,90* / 78 Uw = 0,84** / 88 Uw = 0,79**

INSTALLATION DEPTH

68/78/88 mm + spacer bar 14 mm

Gaskets

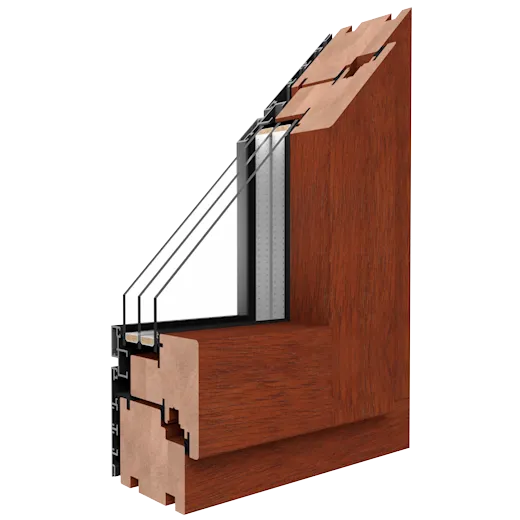

DUOLINE - 68, 78, 88

These windows are a perfect combination of timeless classic wood with a lightweight and extremely durable form of aluminium. Numerous additional options will help you create the windows to meet all of your expectations.

*coefficient calculated using the 4/18/4/18/4 argon gas-filled package – Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar for a window made of a wooden profile (Meranti) and measuring 1,230x1,480 mm

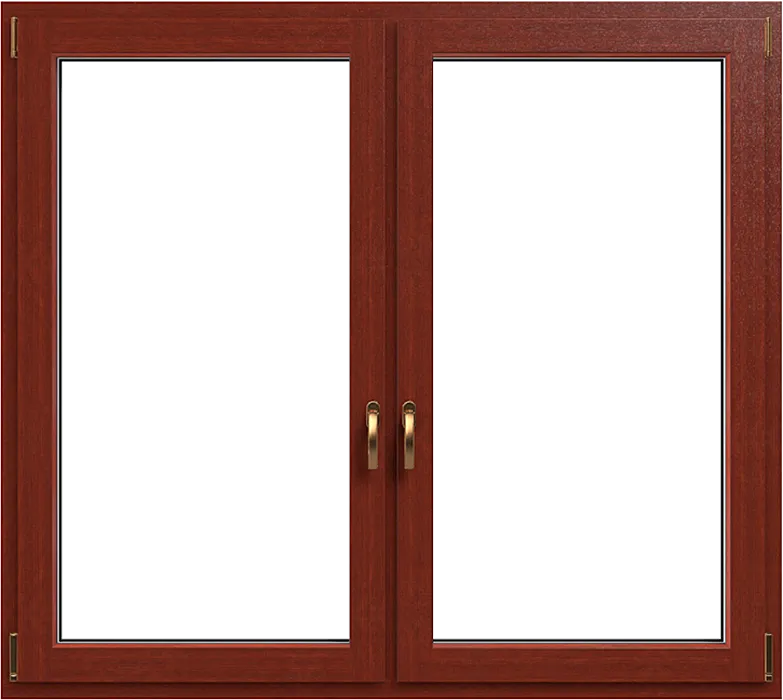

Wood-aluminium window colour range

Choose the window colour that suits you. Over 200 RAL colours for the aluminium part of the window and a dozen or so colours of opaque paints (covering the entire wood structure) and stain paints for the wooden part of the window.

Indoor view

outdoor view

Maghoni
Pine

Maghoni
Meranthi

Teak
Pine

Teak
Meranthi

Nut
Pine

Nut
Meranthi

Bright oak
Pine

Bright oak
Meranthi

White Softline

Palisander
Pine

Palisander
Meranthi

Dark Oak
Pine

Dark Oak
Meranti

Choose the colour for the wooden part::

Maghoni

Pine

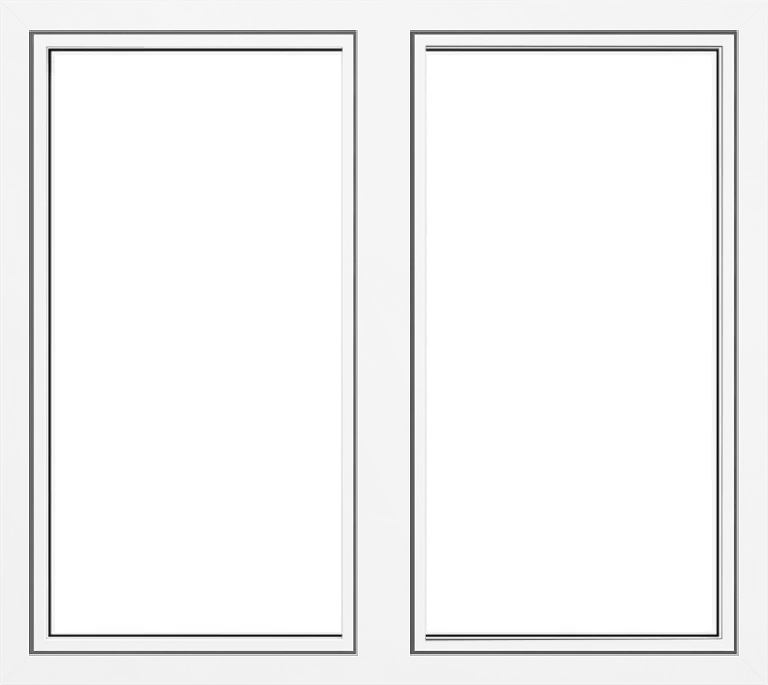

Choose the colour for the aluminium part::

Orange brown

RAL-8023

Glass

DRUTEX, with over 30 years of experience in the production of composite glass, offers a very wide range of glass with which you can fit your windows and doors. They meet strict requirements for energy efficiency and sound insulation. The offer also includes laminated glass (safe and burglar-proof), sun protected glass, glass with enhanced sound insulation, tempered, ornamental and sandblasted glass.

Additional options

Frames

Galvanised steel frame is the standard. Hoever It is possible to choose the Swisspacer Ultimate warm frame.

See all

Muntin bars

Muntin bars will add classic and timeless style to your windows and doors.

See all

Reliable fittings

MACO fittings are the perfect solution in terms of security and functionality of windows and doors made of PVC, aluminium and wood.

See all

Sandblasted glass

Express your unique style on your windows and doors. We offer the possibility of creating any sandblasting pattern in three shades of gray.

See all

Ventilation

Thanks to our ventilators, your windows and doors will take care of proper ventilation and fresh air flow.

See all

Handles

Our PVC, aluminium and wood handles are distinguished by their high aesthetics, functionality and durability. Thanks to various colour options, they can be perfectly matched to the colour of the windows, doors, or the colour scheme of the building.

Window handle (white)

Window handle (brown)

Window handle (black)

Window handle - DUBLIN (white RAL9016)

Window handle - DUBLIN (brown RAL8019)

Window handle - DUBLIN (RAL7016)

Window handle - DUBLIN (RAL9005)

Window handle - DUBLIN (silver)

Window handle with a key - DUBLIN (RAL7016)

Window handle with a key - DUBLIN (RAL9005)

Window handle with a key - DUBLIN (silver)

Hoppe Secustic window handle (white)

Hoppe Secustic window handle F1

Hoppe Secustic window handle F2

Hoppe Secustic window handle F4

Hoppe Secustic window handle F9

Window handle IE (white)

Window handle IE (brown)

Window handle IE (olive)

Window handle IE (silver)

Window handle MA 1010 (stainless steel)

Window handle (olive)

Window handle (silver)

Hope Secustic window handle (brown)

Window handle with a key (white)

Window handle with a key (brown)

Window handle with a key - DUBLIN (white RAL9016)

Window handle with a key - DUBLIN (brown RAL8019)

Window handle with a key IE (white)

Window handle with a key IE (brown)

Window handle with a key (olive)

Window handle with a key IE (silver)

Window handle with a key (olive)

Window handle with a key (silver)

Window handle with a button (white)

Window handle with a button (brown)

Window handle with a button - DUBLIN (white - RAL9016)

Window handle with a button - DUBLIN (brown RAL8019)

Window handle with a button - DUBLIN (RAL7016)

Window handle with a button - DUBLIN (RAL9005)

Window handle with a button - DUBLIN (silver)

Window handle with a button (olive)

Window handle with a button (silver)

Compare products

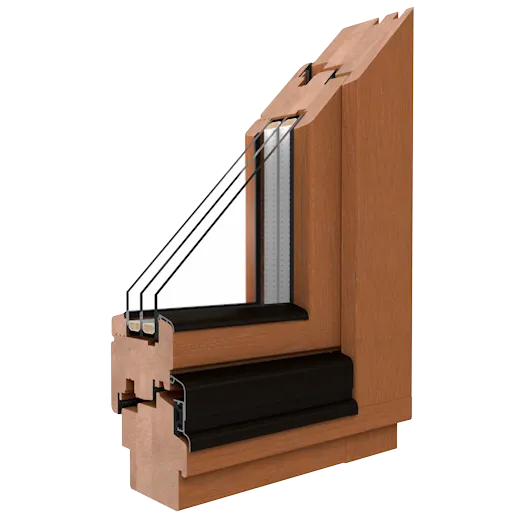

Technical data	DUOLINE - 68, 78, 88	SOFTLINE - 68, 78, 88
Number of chambers	Solid profile	Solid profile
Installation depth	Duoline 68 - 68 mm + spacer bar 14 mm Duoline 78 - 78 mm + spacer bar 14 mm Duoline 88 - 88 mm + spacer bar 14 mm	Softline 68 - 68 mm Softline 78 - 78 mm Softline 88 - 88 mm
Number of gaskets	3	2
Thermal transmittance	Duoline 68 from Uw = 0,90 W/(m²K)* Duoline 78 from Uw = 0,84 W/(m²K) Duoline 88 from Uw = 0,79 W/(m²K) For a window measuring 1,230x1,480 mm - calculation method, meranti wood, with the argon gas-filled glass package Ug = 0.6 W/(m²K), with the Swisspacer plastic spacer bar. *For a window measuring 1,230x1,480 mm - calculation method, meranti wood, with the argon gas-filled glass package Ug = 0.5 W/(m²K), with the Swisspacer plastic spacer bar.	Softline 68 Uw = 1,08 W/(m²K)* Softline 78 Uw = 0,9 W/(m²K) Softline 88 Uw = 0,8 W/(m²K)* For a window measuring 1,230x1,480 mm - calculation method, meranti wood, with the argon gas-filled glass package Ug = 0.8 W/(m²K), with the Swisspacer plastic spacer bar. *For a window measuring 1,230x1,480 mm - calculation method, meranti wood, with the argon gas-filled glass package Ug = 0.8 W/(m²K), with the Swisspacer plastic spacer bar.
Glass packages	Duoline 68 to 46 mm Duoline 78 to 50 mm Duoline 88 to 50 mm	Softline 68 to 32 mm Softline 78 to 44 mm Softline 88 to 54 mm

select the differences

DUOLINE - 68, 78, 88

DUOLINE - 68, 78, 88

Wood-aluminium window colour range

Glass

Additional options

Handles

Compare products
