IGLO EDGE
IGLO EDGE
Our new, most technologically advanced window is distinguished by an excellent thermal insulation parameter of Uw = 0,66 W/(m2K)* and a modern, angular profile shape. The extremely good thermal insulation parameters are due, among other things, to the 7-chamber profile design and 3 EPDM gaskets, including the central gasket. Standard Equipment:
- double-chamber glazing package Ug = 0,5 W/(m2K)
- Swisspacer Ultimate plastic warm frame
- V-perfect weld
- 4 anti-theft strikers according to the size of the sash and the hardware system
- microventilation
- DUBLIN aluminium window handle
- handle misplacement locking mechanism
- perimeter, glazing and central gaskets in black or grey
- filling of the lower hardware groove
- sill trim
- wide selection of pvc veneer colours
- 3 profile colours to choose from: white, brown or anthracite
PVC window colour range
703905-097
702305-167
915205-168
1137905-167
887505-167
2178007-167
61
49240015-148
612505-167
715505-167
3162002-167
701605-167
701605-097
308105-167
703905-167
2115008-167
3152009-167
2178001-167
2097013-167
02.20.71.000001-504700-047
3118076-167
725105-167
701205-167
F456-3081
9.1293001-195
(7015) 02.11.71.000040-097
(DB703) 1.0065002-097
02.20.01.000002-504700-047
F470-3001
Jet black
02.12.17.000001-195
Glass
Additional options
(standard)
Brown
Black
Grey
(standard)
Brown
Black
Grey
Sizes: 27/45/65 mm
Sizes: 8/18/26/45 mm
Sizes: 27/45/65 mm
Sizes: 8/18/26/45 mm

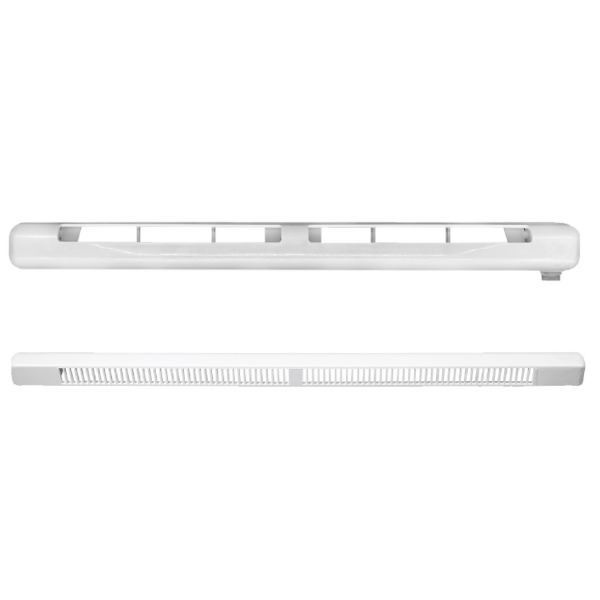

6-30 m3/h*
6.2-22 m3/h*
7-28 m3/h*
5-29 m3/h*
5.6 m3/h*
6.5 m3/h*
30 m3/h*
6-30 m3/h*
6.2-22 m3/h*
7-28 m3/h*
5-29 m3/h*
5.6 m3/h*
6.5 m3/h*
30 m3/h*
Handles
Compare products
| Technical data |  IGLO EDGE |  IDEAL 7000 NL |  IDEAL NEO AD |  IDEAL NEO MD-FS |  IDEAL NEO MD MONOBLOCK |  IDEAL NEO MD RENOVATION |  IGLO ENERGY ALUCOVER |  IDEAL NEO MD |  IGLO Energy |  IGLO Energy Classic |  IGLO 5 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of chambers | 7 | 5 | 5/6 | 6 | 6 | 5/6 | 7 | 6 | 7 | 7 | 5 |
| Installation depth | 82 mm | 120 mm | 76 mm | 76 mm | 76 mm / 122 mm / 142 mm / 162 mm | 76 mm | 76 mm | 82 mm | 82 mm | 70 mm | |
| Number of gaskets | 3 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 2 |
| Thermal transmittance | Uw = 0,69 W/(m2K)* | Uw = 0,82 W/(m2K)* *For a window measuring 1,230x1,480 mm, with the Swisspacer Ultimate plastic spacer bar. | Uw = 0,79 W/(m2K)* *For a window measuring 1,230x1,480 mm, with the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,73 W/(m2K)* *For a window measuring 1,230x1,480 mm, with the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,76 W/(m2K)* *For a window measuring 1,230x1,480 mm, with the Swisspacer Ultimate plastic spacer bar. | Uw = 0,76 W/(m2K)* *For a window measuring 1,230x1,480 mm, with the Swisspacer Ultimate plastic spacer bar. | Uw = 0,79 W/(m2K)* *For a window measuring 1,230x1,480 mm – CSI in the Czech Republic Uw = 0.79 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,76 W/(m2K)* *For a window measuring 1,230x1,480 mm, with the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,79 W/(m2K)* *For a window measuring 1,230x1,480 mm – CSI in the Czech Republic Uw = 0.79 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. | from Uw = 0,81 W/(m2K)* | Uw = 0,94 W/(m2K)* *For a window measuring 1,230x1,480 mm – CSI in the Czech Republic Uw = 0.94 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.6 W/(m2K), with the Swisspacer plastic spacer bar. |
| Glass packages | 24-58 mm | 24-54 mm | 24-54 mm | 36-68 mm | 24-52 mm | 24-52 mm | 24-48 mm | 24-54 mm | 24-48 mm | 24-52 mm | 24-40 mm |
| Sound insulation | — | dB = 36 | dB = 36 | dB = 36 | dB = 36 | dB = 36 | - | dB = 36 | dB = 37-46 | dB = 36-42 | dB = 36-44 |
